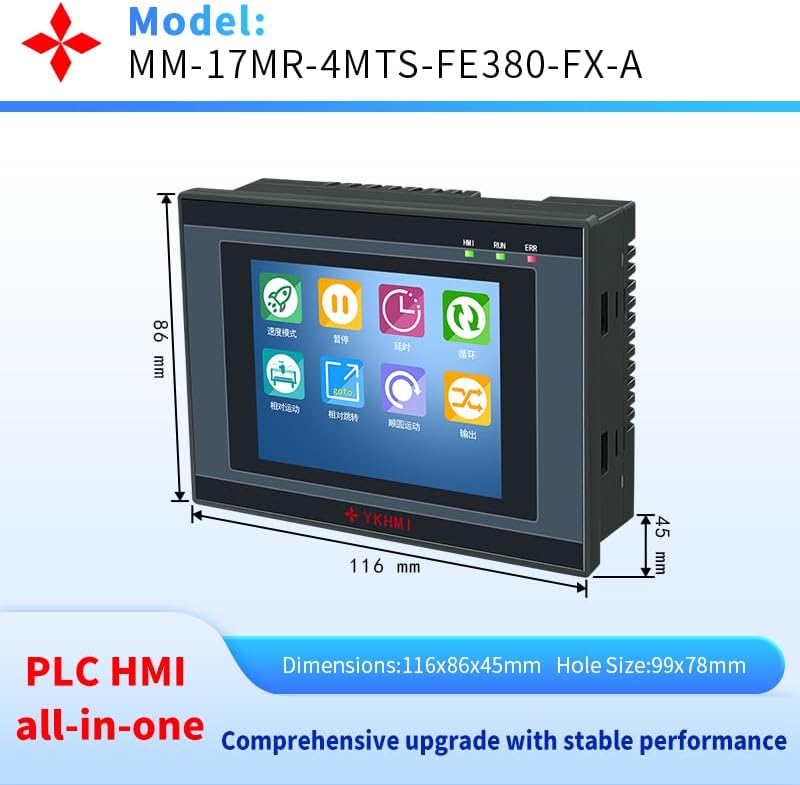

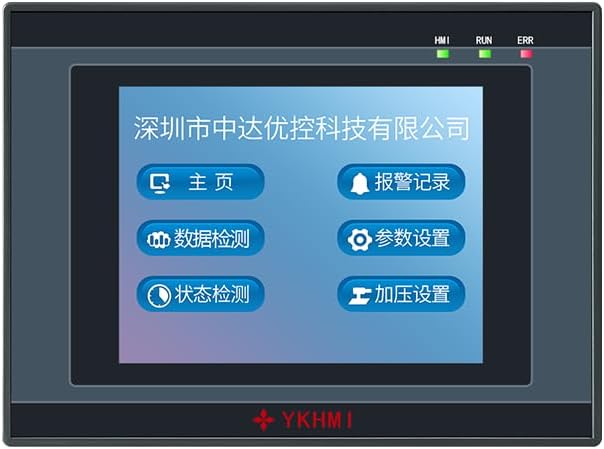

3.8 Inch PLC HMI All in One Integrated Programmable Logic Controller, 10 Input 7 Relay Output, 2 High-Speed Pulse 100KHz for Sevor or Stepper, 2 100Khz Input for Encoder (17MR-FE380-FX-A)

YKHMI PLC HMI Integrated Programmable Logic Controller MM-17MR-4MTS-FE380-FX-A Description: Please download the User manual / HMI Software / USB Driver / Tutorial / Diagram : https:// drive.google.com/drive/folders/1N4nXlDS_wumzx0K0zZJURaIR--garByl?usp=sharing Attention: 1. HMI: In the HMI software, pls choose HMI Model serials FE, model no. is 380 2. PLC Type in HMI need set as FXCUP 1. PLC Type: Fully compatible with FX1S, 10 Input 7 Relay Output . Have additional 4 Transistor Output: 2 for high speed pulse 100KHz (5V pulse single) & 2 for direction, can drive 2 servos or 2 steppers with pulse; have 2 high speed input 100KHz X0 X1 to control encoder also 2. PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming 3. HMI Software: YKBuilder V5.3 / 7.0 (Pls contact us, we will share it and the video instruction and guidelines) 4. Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC’s USB driver first, which we will share. 5. High Speed: 2 high speed counting, 2 high speed output pulse (Y0 Y1 100KHz) with 5v signal; have 2 high speed input 100KHz X0 X1 to control encoder also Packing List: 1 X HMI PLC All In One 1 X Cable for PLC and HMI program download 2 X Pulse cable to connect for PLC and Servo or Stepper 4 X Buckles Attention：Pls contact us for HMI sofeware, USB driver, User mannual and instructions, thank you!

• -- PLC Type: Fully compatible with FX1S, 10 Input 7 Relay Output (5V pulse single). Have additional 4 Transistor Output: 2 for high speed pulse 100KHz & 2 for direction, can drive 2 servos or 2 steppers with pulse; have 2 high speed input 100KHz X0 X1 to control encoder also
• -- PLC software: Use GX Workers 2 or Developer (pls download from GX Workers 2 website, we only have Chinese version), support Command + T Ladder Diagram + SFC for programming
• -- HMI Software: YKBuilder V5.3 (Pls contact us, we will share it and the video instruction and guidelines), very easy to use, just create the buttun and set the address
• -- Use the same Cable for download program from PC to PLC/HMI: Use the: mini port – USB cable, pls install HMI & PLC’s USB driver first, which we will share.
