Megohmmeter 1000V Insulation Resistance Tester, 1999 Counts Megaohm Meter Big LCD Display DCV ACV Megohm Meter DC250/500/1000V, 200MΩ~2000MΩ Resistance Testing with Data Hold Backlit for Motor Cables

★★★★★ 4.1 120 reviews

$48.99
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by mtbfirstaid.com.au
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$48.99
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Apr 7
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by mtbfirstaid.com.au
Free 30-day returns Details

Product details

Management number 210914014 Release Date 2026/04/04 List Price $19.60 Model Number 210914014
Category

General Description:With digital bridge, the instrument can test insulation and its main features include easy to operate,wide test range,highly stable performance,backlight LCD display,date hold and auto power off.Using a shoulder strap,it can be used by both hands.This Insulation testers are instruments used to measure the insulation strength and electrical safety performance of electrical equipment, widely used in power, industrial, construction, electronic and other fields to ensure the safe operation of equipment.Specifications:Insulation resistance: 250V/500V/1000V250V 0 ~ 200MΩ ±(4.0%+2)500V 0 ~ 200MΩ ±(4.0%+2)1000V 0 ~ 2GΩ ±(4.0%+2)Resistance: 2000Ω ±(1.0%+5)DCV: 0-1000V (1.0%+5)ACV: 0-750V (1.5%+5)Special Functions:Data holdManual rangeLCD backlightMax.display: 1999Function protectionLow battery indicationInput impedance: 1MΩSampling rate: 3 times/Sec.Continuity alarm: Less than 30Ω±10ΩGeneral Characteristic:Power source: 6 * 1.5V AA battery (INCLUDED)or external DC 9V power source(Not INCLUDED)LCD size: 75×52mmWeight: 580g Meter size: 176 (L) x116 (W) x63 (D) mmColor: Dark gray-yellowPackage Size: 20.5 * 17 * 7cm / 8 * 6.7 * 2.7inPackage Weight: 709g / 1.6lb

  • 【High Precision Insulation Resistance Tester】Testing Voltage:250V/500V/1000V;Insulation Resistance:200MΩ-2000MΩ;AC Voltage:0-750V;Frequency Range:40Hz-400Hz; Manual range; 1999 Counts
  • 【1000V Insulation Resistance Tester】Testing Voltage:250V/500V/1000V;Insulation Resistance:200MΩ-2000MΩ;AC Voltage:0-750V;Frequency Range:40Hz-400Hz; Manual range; 1999 Counts

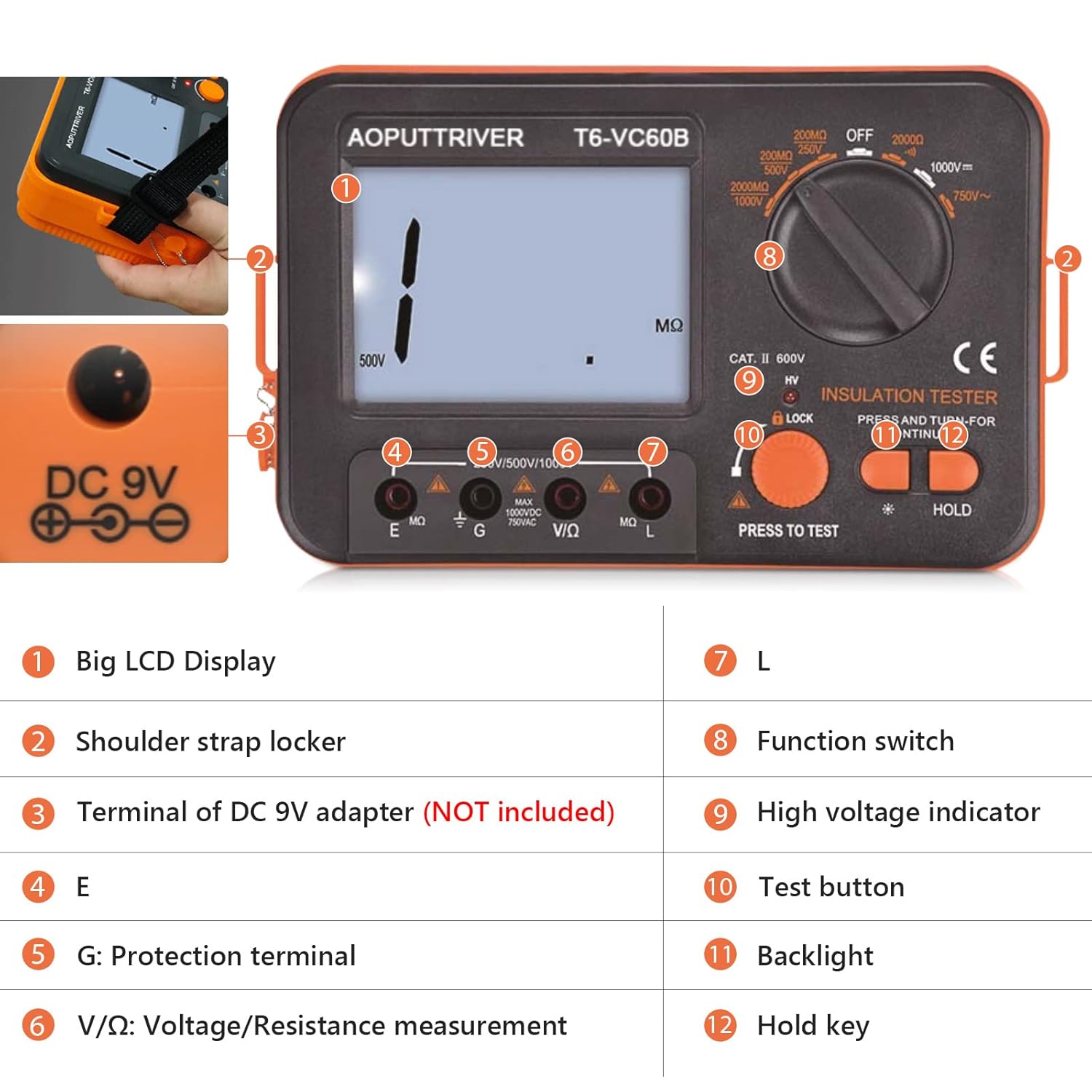

  • 【Multi-function Megohmmeter】 Big LCD display, easy to read, Unit symbol display, easy to use, Backlight display, easy to get the values when you in a dark environment, Date hold, HV red indication, "LOCK" function, Continuously measure the object, press the test button and turn it to the right to keep the measurement state, free your hands
  • 【Ideal Electrical Test Instrument】Shoulder strap design, Convenient for you outside, This insulation resistance tester is widely used in power transformers, engines, electrical cables, circuit board testing, household appliance repairs, electrical appliances, etc
  • 【Power Source】1.5V(AA)*6 batteries are included. You can also use DC 9V power source start to use, (NOTE: this is not included) AOPUTTRIVER provides 365 days technical support, if you have any problems about our products, please let me konw !
Color T6-VC60B-US
Model Megaohm Meter 1000V
Brand Name AOPUTTRIVER
Item Weight 580 Grams
Manufacturer AOPUTTRIVER
Power Source Battery Powered
Measurement Type Ohmmeter
Specification Met Ul 61010-1, Iec 61010-2-030, Ce
Included Components manual
Minimum Operating Voltage 250 Volts (DC)
